packed with power
Ideal for contractors, landscapers, rental users and homeowners
Performance

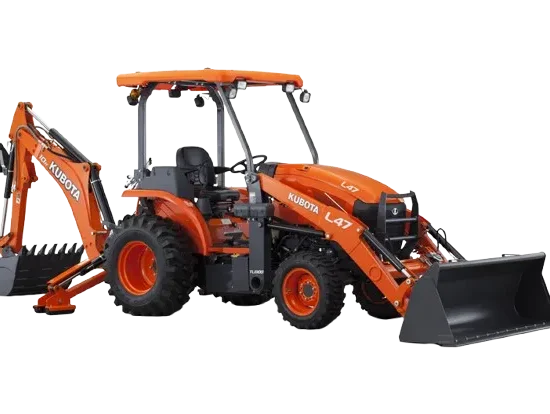

Sporting an HST Plus transmission and packed with power, the new L47 tractor/loader/backhoe is ideal for contractors, landscapers, rental users and homeowners seeking professional results.
Power
You’ll experience greater power, dependability and cleaner emissions with the 47.1HP/35.1 kW Kubota diesel engine. It starts quickly in cold weather and sustains high torque rise, even under heavy loads or at lower speeds.
Technical Specs
| Brand, model | Kubota, L47 |
| Type | Indirect injection vertical, water-cooled, 4 cycle diesel |
| Engine gross power – kW (HP) | 47.1 HP (35.1 kW) |
| Engine net power – kW (HP) | 44.7 HP (33.3 kW) |
| PTO power – kW (HP) | 33.0 HP (24.6 kW) |
| Total displacement – cm3 | 2434 |
| Fuel tank capacity – l | 67 |
| Alternator – Amp | 45 |
| Type | HST Plus |
| No. of speeds | (6 range) |
| Max. traveling speed – km/h | 22.5 |
| Range shift lever position | Seat side, right |
| Brake type | Multiple wet discs |
| Clutch | Dry, Single |
| PTO type | Independent PTO |
| Speed – rpm | 540 |
| Pump capacity – l/min. | 94.9 |
| 3-point hitch lift capacity at 610mm behind lift point – kg | 1250 |
| Position Control system | Standard |
| Standard tyre size (front / rear) | 27 x 10.5 –15R4 / 15 –19.5R4 |
| Overall length (without 3P, with front guard – mm | 2948 |
| Overall height with ROPS & FOPS – mm | 2415 |
| Overall width – mm | 1842 |
| Wheelbase – mm | 1841 |
| Min. ground clearance (at transmission case) – mm | 365 |
| Tread width Front – mm | 1165 |
| Tread width Rear – mm | 1426 |
| Turning radius – m | 3.4 |
| Weight with Loader, Backhoe and ROPS/FOPS – kg | 3254 |
| Power steering | Hydrostatic |
| 3-point hitch (Category I) | Optional |
| ROPS | 4 post, standard |
| FOPS | Standard |
TRACTOR
Loaded with a robust Kubota diesel engine and a high-performing HST Plus Transmission, the new L47 tractor/loader/backhoe gets the job done. Besides its world-class powertrain, the L47 features advanced technologies such as a digital panel, a slanted hood and loader boom design, and a handy backhoe crawling mode. And if that isn’t enough, an easy-detach backhoe allows the use of a Category I 3-point hitch (optional) and independent PTO. With all these features, the new Kubota L47 promises to be your go-to tractor for almost any job.
FRONT LOADER
Excellent operation. Better visibility. Superior versatility. These are just some of the reasons Kubota’s performance-matched loaders are considered unrivaled for power and productivity. With 4531 lbs (20153 N) of breakout force, 2848 lbs (1292 kg) of lift capacity and a 113.9 in (2893 mm) lift height, these remarkable loaders have the strength and reach for most projects.
Max Lifting Height: 2893 mm
Max Lift Capacity: 1292 kg
BACKHOE
With the L47’s HST Plus, this heavy-duty backhoe operates more effectively than ever. Combine the
HST Plus with the new backhoe crawling mode and watch your productivity go up. This backhoe
also boasts a 21.0 in (3073 mm) digging depth, a standard hydraulic thumb bracket, and a high performance inching valve.
Bucket Digging Force: 25892 N
Max Digging Depth: 3073 mm
