A NEW LEVEL OF POWER & PERFORMANCE
- Highest dump height in its segment
- Highest load over height in its segment
- Maximum digging depth in its class
Performance
Outstanding excavator bucket, breakout force and tear out force ensures faster cycle time of operation. Highest dump height in its segment, with a more durable and rugged bucket for more efficiency.
Power
You’ll experience exceptional power, reliability, and efficiency with the 90HP (67 kW) Kirloskar diesel engine. Built with the world’s best aggregates, the DIGMAX 3E delivers superior productivity, longer service intervals, and dependable performance even under demanding conditions.
Technical Specs
| Brand, model | Kirloskar, 4R1040TA |
| Engine gross power – kW (HP) | 90 HP (67 kW) |
| Fuel tank capacity – l | 134 |
Hydraulic Pump – Tandem Gear Pump
Maximum Flow (Both Pumps) 117.5 lpm @ 2200 rpm
System Main Relief Setting 225 bar
Fixed Flow, Open Centre Two Pump Unloading Energy Efficient Hydraulic System
TRANSMISSION
Four Speed (4F, 4R gear) syncro shift, electrically controlled 2WD or 4WD, reversing shuttle transmission provides superior traction, gradeability, higher force while entering pile or during dozing operation
Neutral start provision prevents starting when shuttle is engaged
Gear lever with transmission disconnect switch adds to the overall ease of gear shifting
TRAVEL SPEED
| Gear | F/R Gear |
| 1st Gear | 5.3 kmph/4.6 kmph |
| 2nd Gear | 8.5 kmph/7.0 kmph |
| 3rd Gear | 18.5 kmph/Not recommended |
| 4th Gear | 36.6 kmph/Not recommended |
BRAKES
Service Brakes: Hydraulically actuated dual line, self-adjusting, oil immersed, multi disc type on rear axle
Parking Brakes: Hand-operated caliper disc brakes
AXLES
Front drive (4WD) and steer axle with 12 deg/16 deg (4WD) oscillation for maximum ground contact in undulated condition
Rear drive axle, rigidly mounted to chassis
STEERING
Hydrostatic power steering in front wheel
Hydraulic supply from pump via priority valve for quick response steering
Working pressure: 120 bar
| Hydraulic System Oil | 105 | litres |
| Fuel Tank | 134 | litres |
| Engine Coolant | 8 | litres |
| Engine Oil | 11.5 | litres |
| Transmission Oil | 19.5 | litres |
| Rear Axle Oil | 17.5 | litres |
| Front Axle Oil (4WD) | 9.1 | litres |
| Brake Reservoir Oil | 1.0 | litre |
GPS + GSM based equipment monitoring system is a standard fitment and provides SMS alerts for effective equipment management and acts as a diagnostic tool
- Warning Message-SMS, Mail, Online
- Engine Coolant Temperature
- Hydraulic Oil Temperature
- Transmission Oil Temperature
- Engine Oil Pressure
- Battery Charging Status
- Machine Idle Information
- Fuel Level Information
- A.C./Heater, HVAC
- Multi-purpose (6 in 1) Loader Bucket
- Rock Breaker Piping/Circuit
- Extendible Dipper (Telescopic Arm)
- Ripper Tooth
- Heavy Duty Rear Tyres: 14 x 25 – 20 PR
- Trenching Buckets – 0.09 Cum, 0.12 Cum, 0.18 Cum
- Special Purpose Buckets – 0.30 Cum, 0.32 Cum
- Coal Bucket – 1.5 Cum
- Optical Fibre Trench Bucket (300 mm)
- Mining Kit
| Description | Unit | Standard |
| M: Dump Height (Cutting Edge) | m | 3.00 |
| N: Load Over Height (Cutting Edge) | m | 3.51 |
| O: Pin Height (Cutting Edge) | m | 3.7 |
| P: Pin Forward Reach | m | 0.43 |
| Q: Reach at Ground | m | 1.57 |
| R: Max Breakout at Full Height | m | 1.22 |
| S: Reach at Full Height – Bucket Dumped | m | 0.85 |
| T: Below Ground Level Dig Depth | m | 0.11 |
| U: Rollback at Ground | deg | 45 |
| V: Dump Angle | deg | 45 |
| Bucket Breakout Force | kgf | 6425 |
| Loader Arm Breakout Force | kgf | 5777 |
| Payload | kg | 1980 |
| Return to Dig | Available | |
| Self Leveling | Available | |
| Loader Bucket Capacity | m³ | 1.2 |
| Description | Unit | Standard Dipper | Extendible Dipper |
| A: Max Dig Depth (Bucket in Dump Position) | m | 4.80 | 6.01 |
| B: Reach Ground Level to Rear Wheel Center | m | 6.97 | 8.14 |
| C: Reach Ground Level to Slew Center | m | 5.65 | 6.77 |
| D: Reach at Full Height to Slew Center | m | 2.23 | 3.31 |
| E: Side Reach to Center Line of Machine | m | 6.00 | 7.31 |
| F: Max Working Height (Stab’s Fully Out) | m | 6.30 | 6.93 |
| G: Max Load Over Height (Stab’s Fully Out) | m | 4.39 | 5.13 |
| H: King Post Travel | m | 1.00 | |
| J: Bucket Rotation Power | deg | 187 | |
| Bucket Tear Out Force | kgf | 6018 | |
| Dipper Tear Out Force | kgf | 3250 | 2072 |
| Lift Capacity of Bucket at Full Reach (SAE J31) | kgf | 1554 | 850 |
| Co-Axial Carriage | Yes | ||
| Excavator Bucket Capacity | m³ | 0.26 | 0.18 |
| Description | Unit | Standard Dipper | Extendible Dipper |
| AA: Overall Length (Transport Mode) | m | 6.28 | |
| A1: Overall Length (Travel mode) | m | 7.85 | |
| BB: Wheel Base | m | 2.14 | |
| CC: Rear Wheel to Slew Center | m | 1.38 | |
| DD: Minimum Ground Clearance | m | 0.35 | |
| EE: Slew Ground Clearance | m | 0.59 | |
| GG: Height to Top of Cab | m | 2.9 | |
| HH: Overall Height | m | 3.78 | 4.04 |
| JJ: Track Width – Rear | m | 1.75 | |
| KK: Track Width – Front | m | 1.87 | |
| LL: Width Over Bucket | m | 2.38 | |
| L1: Width (Transport mode) | m | 2.56 | |
TRACTOR

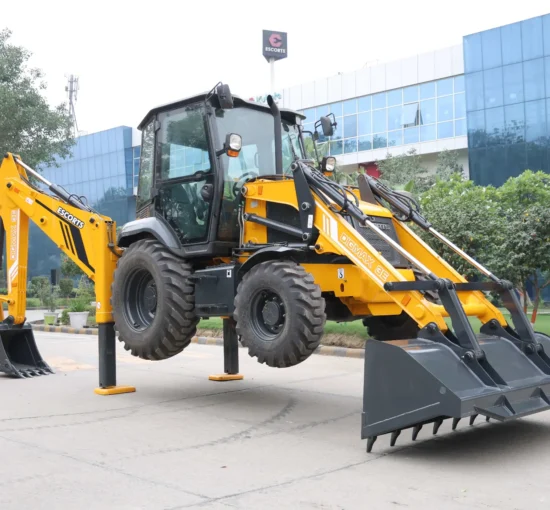

Loaded with a powerful 90HP Kirloskar diesel engine and Four Speed (4F,4R gear) syncro shift, electrically controlled 2WD or 4WD transmission, the DIGMAX 3E loader gets the job done. With the Digmax 3E, ECE redefines excellence in the global earthmoving equipment industry. The DIGMAX 3E features a spacious ergonomic cabin, highest dump height in its segment, and outstanding excavator bucket performance. With world-class aggregates ensuring superior productivity and maximum digging depth for faster cycle times, the DIGMAX 3E promises to be your go-to machine for almost any earthmoving job.
FRONT LOADER
Excellent operation. Better visibility. Superior performance. These are just some of the reasons DIGMAX 3E’s performance-matched loader is considered unrivaled for power and productivity. With 6425 kgf of bucket breakout force, 1980 kg of payload capacity and a 3.00 m dump height, this remarkable loader has the strength and reach for most projects. Featuring the highest dump height in its segment with a more durable and rugged 1.2 m³ bucket, it delivers more efficiency and faster cycle times for maximum productivity on your job site.
Max Dump Height: 3.00 m
Payload Capacity: 1980 kg
Loader Bucket Capacity: 1.2 m³
BACKHOE
With the DIGMAX 3E’s advanced hydraulic system, this heavy-duty backhoe operates more effectively than ever. Featuring outstanding excavator bucket performance with exceptional breakout force and tear-out force, watch your productivity soar with faster cycle times. This backhoe boasts an impressive 4.80 m digging depth (standard dipper) or 6.01 m (extendible dipper option), co-axial carriage for versatility, and world-class aggregates ensuring superior performance and longer service intervals for maximum uptime and profitability.
Bucket Tear Out Force: 6018 kgf
Max Digging Depth: 4.80 m (Standard) / 6.01 m (Extendible)
Backhoe Bucket Capacity: 0.26 m³ (Standard)
